Begin with good polypropylene resin. This helps make strong sheets. Pick the right resin for your product needs.
Add a masterbatch to give color and features. This lets you change how your sheets look and work.
Keep the temperature and flow steady when extruding. This stops bubbles and weak spots from forming.
Check quality at every step. Test thickness and strength often. This makes sure the sheets are good enough.
Recycle the trimmed edges to cut waste. Put these edges back into making new sheets. This helps save money and is better for the environment.
You begin making PP sheets by picking the right resin. The type you choose changes how your sheets work. Homopolymer resins help your sheets handle heat and stay stiff. Random copolymers make sheets stronger when hit but melt easier. Block copolymers keep sheets tough in cold and still resist heat.
Your resin must be pure. Pure resin makes sheets clear and strong. It also helps them last longer in heat. If your resin has dirt, your sheets can get weak and break.
Polypropylene resin gives you:
Sheets that are strong
Sheets that are light
Sheets that resist chemicals
You make a masterbatch to add color or special traits. The masterbatch mixes color or other things into a carrier resin. This step lets you pick how your sheets look and work.
Type of Masterbatch | Description |
|---|---|
Color Masterbatch | Adds bright color with good pigments or dyes in a polyolefin carrier. |
Additive Masterbatch | Makes sheets better with things like UV blockers or flame stoppers. |
Filler Masterbatch | Changes cost and sheet traits with fillers. |
You can put in UV blockers, antioxidants, or other helpers. These keep your sheets safe from sun and help them last longer. HALS and UV absorbers stop fading and damage outside. How much you add depends on what you need. Most times, you use 2% to 8% for special helpers.
You use feeding and dosing systems to move resin and masterbatch into the extruder. These systems keep the flow steady and correct. The feeding unit brings in the raw resin. The dosing system puts in the right amount of color or helpers. Gravimetric dosing systems measure by weight for good accuracy.
Component | Role in Production |
|---|---|
Feeding Unit | Puts raw PP resin into the extruder and keeps supply steady. |
Dosing System | Adds color, helpers, or fillers to make sheets better. |
Gravimetric Dosing System | Measures by weight for steady quality. |
Automated dosing systems cut down on hand work and make things faster. They help your sheets stay the same by controlling each ingredient. When you feed and dose just right, you get better sheets and less waste.

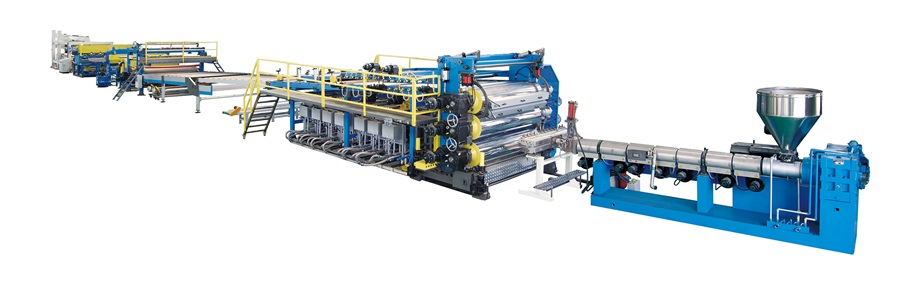

You begin by putting resin and masterbatch into the extruder. The extruder heats the resin until it melts. You can use a single-screw or twin-screw extruder. Each type works in its own way.
Feature | Single-Screw Extruder | Twin-Screw Extruder |
|---|---|---|
Mixing Capability | Basic | Excellent |
Material Handling | Clean pellets | Powders, recycled materials |
Melt Uniformity | Good | Superior |
Stable | Very high |
Twin-screw extruders mix things better. They make the melt more even. Your sheets look clearer and feel smoother. Colors and fillers mix well in these machines. Good venting removes bubbles from the melt. This keeps your sheets strong.
You need to watch the temperature inside the extruder. If the temperature changes too much, the melt gets uneven. This can make weak spots or bubbles in your sheets. Keeping the temperature steady helps you make good sheets.
Tip: Always check the temperature and screw speed. These things change how polypropylene is made and the sheet quality.
After melting, you push the polypropylene through a flat die. The die shapes the hot melt into a thin, wide sheet. The die design matters in making polypropylene. It sets the width and thickness of your sheet.
Key Die Feature | What It Does |
|---|---|
Die Structure | Changes width and thickness |
Channel Design | Guides melt flow for even sheets |
Material Selection | Uses strong steel for long life |
You must keep the melt temperature even in the die. If the temperature changes, you might see lines or bubbles. A good die design helps stop these problems. This step is important in making polypropylene sheets.
Note: Making polypropylene uses about 0.20 to 0.25 kWh for each kilogram.
Next, you move the hot sheet through heated rollers. This is called calendering. The rollers press and stretch the sheet. You control the gap to set the thickness. You can change roller temperature or surface for a glossy or matte look.
Calendering shapes the sheet and stretching makes it stronger. The fibers inside line up and help stop cracks. This part gives your sheet its final look and strength.
Remember: Calendering and stretching are the last steps before cooling. They decide how your sheet feels and works.
You need to cool the hot polypropylene sheet right after it leaves the rollers. This step is called cooling and solidification. You can use different methods to cool the sheet:
Water cooling works fast. You dip or spray the sheet with water. This method helps you set the shape quickly and makes thin sheets very smooth.
Air cooling uses fans or air jets. You blow air over the sheet. This method cools slowly and works well for thick or water-sensitive sheets.
Combination cooling starts with water, then finishes with air. You get both speed and a nice surface.
You run the sheet through chill rolls to pull out heat. These rolls have a double shell for better heat transfer. You often use several chill rolls in an 'S' pattern. This setup cools the sheet evenly and keeps it flat.
If you cool the sheet too fast, it gets clearer but less strong. If you cool it slowly, it becomes stronger but less see-through. You control the cooling rate to get the right balance for your product.
Chill Roll Specification | Details |
|---|---|
Standard Size | 140"W x 87"D x 83"H |
After cooling, you trim the edges of the sheet. This step makes sure every sheet has the same width. You use sharp blades to cut off uneven sides. You can recycle these trimmed edges by feeding them back into the extruder. This practice reduces waste and saves money.
Next, you cut the sheet to the right length. You can make long rolls or short sheets, depending on what you need. Precision cutting helps you meet customer orders and keeps your pp sheet production efficient.
You finish the process when you produce pp plastic sheet roll or stack flat sheets. Automatic winding machines roll up the sheets tightly and evenly. These machines keep the tension just right, so the rolls do not get loose or wrinkled. Automation lets you make more rolls faster and lowers labor costs.
If you need flat sheets, you use a stacker. The stacker piles the sheets neatly for easy packing and shipping. Both winding and stacking help you get your product ready for delivery.
Tip: Recycling trimmed edges and using automatic winders help you save time, cut costs, and keep your production line running smoothly.
You have to check each sheet before sending it out. First, you measure the thickness with special tools. These tools help you see if the sheet is the right size. If the sheet is too thick or thin, it might not work for your customer.
Next, you test how strong the polypropylene sheets are. The most common test is called tensile testing. You use the ASTM D882 standard for this test. In this test, you pull the sheet until it breaks. You see how much force the sheet can handle. You also check the yield point and modulus of elasticity. These numbers show if the sheet is strong and flexible enough for its job.
You also look at the surface of the sheet. You check for scratches, bubbles, or marks. A smooth sheet means your process is working well. You want every sheet to look nice and feel even.
Here are the main quality checks you do:
Use digital gauges to measure thickness.
Test tensile strength with ASTM D882.
Check if the surface is smooth, glossy, or matte.
Look for problems like bubbles or cracks.
Tip: Careful testing helps you keep high standards in every step of pp sheet production.
You must protect your sheets after making them. Good packaging keeps them safe from dust, water, and damage when moving them. You pick the best way to pack based on your needs and order size.
Packaging Method | Description |
|---|---|
Duraflex Packaging | Strong, light, easy to change, good for circular routes, and meets tough industry rules. |
Corrugated Plastic Boxes | Tough, light, bends easily, does not get wet, fights chemicals, can be used again, and is easy to clean. |
PP Plastic Hollow Sheets | Strong, light, does not get wet, used to separate products, and gives padding for breakable things. |
You can put sheets on pallets and wrap them with film. You can also use boxes or hollow sheets for more safety. Store your sheets in a dry, clean place. Keep them away from sun and water. This helps your sheets stay in good shape until your customer uses them.
Remember: Careful packaging and storage help you deliver perfect sheets every time.
When you make PP sheets, you do each step carefully. You plan the masterbatch and use special machines for extrusion. You also check the quality to make sure the sheets work well. Knowing the steps helps you choose good materials and make less waste. New machines, like energy-saving motors and closed-loop systems, help use less power and cut down on waste. This helps you get what you want and protect the environment.
You use polypropylene resin as the main raw material. This resin comes in small pellets or granules. It gives your sheets strength, light weight, and resistance to chemicals.
You add color by mixing a masterbatch with the resin. The masterbatch contains pigments. This step lets you choose bright or custom colors for your sheets.
You must control temperature to melt the resin evenly. If the temperature changes too much, your sheets can get bubbles or weak spots. Steady heat makes strong, smooth sheets.
Yes! You can collect trimmed edges and feed them back into the extruder. This practice saves material and reduces waste. ♻️
You measure thickness with digital gauges. You test strength by pulling the sheet until it breaks. You also look for bubbles, cracks, or marks on the surface.
