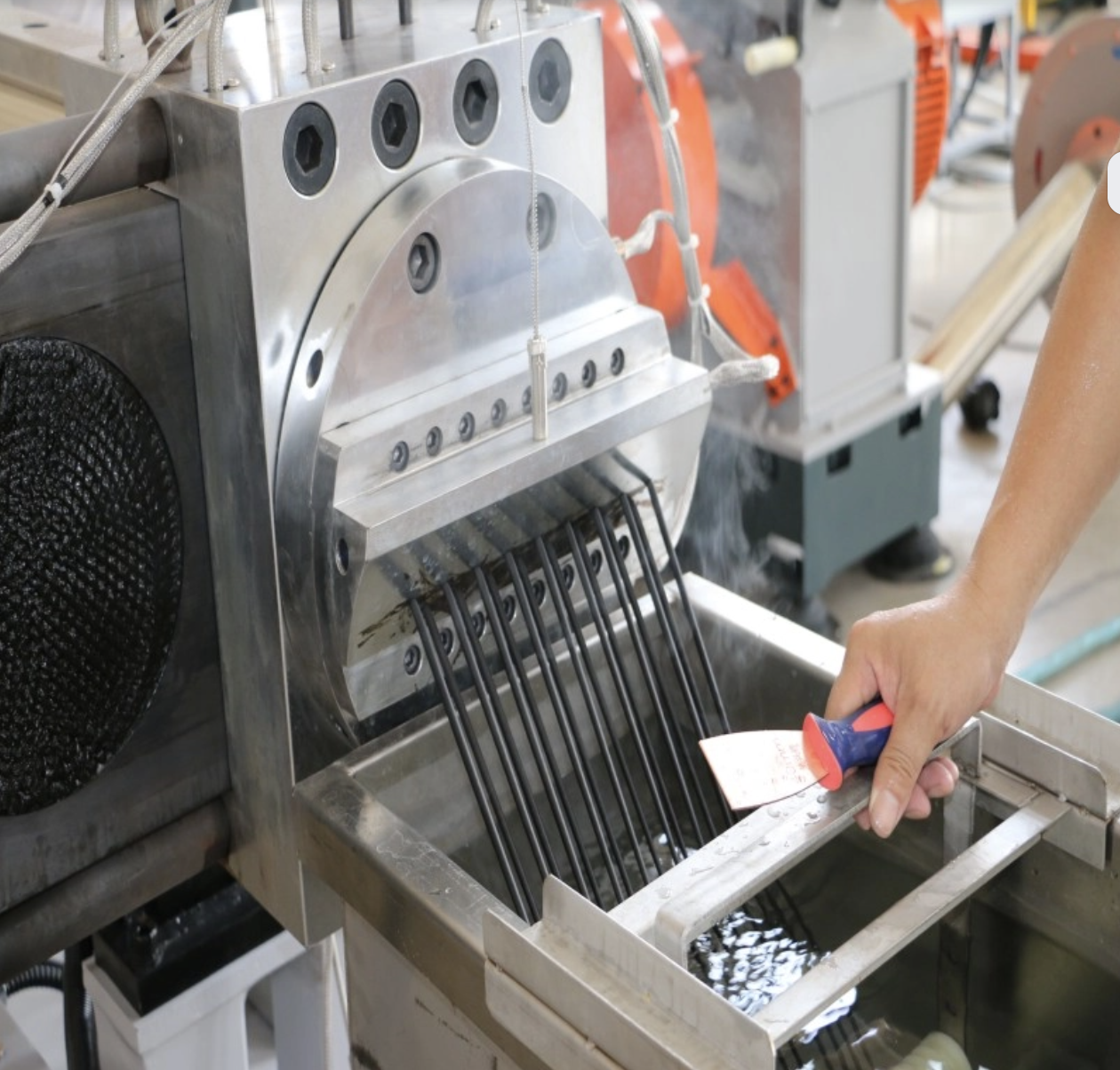

Plastic recycling machines transform waste into reusable materials, but how are these plastics shaped? Enter plastic extrusion machines. These machines are vital for molding plastics into various forms for everyday products. In this post, you'll learn about different types of plastic extrusion machines, their functions, and applications.

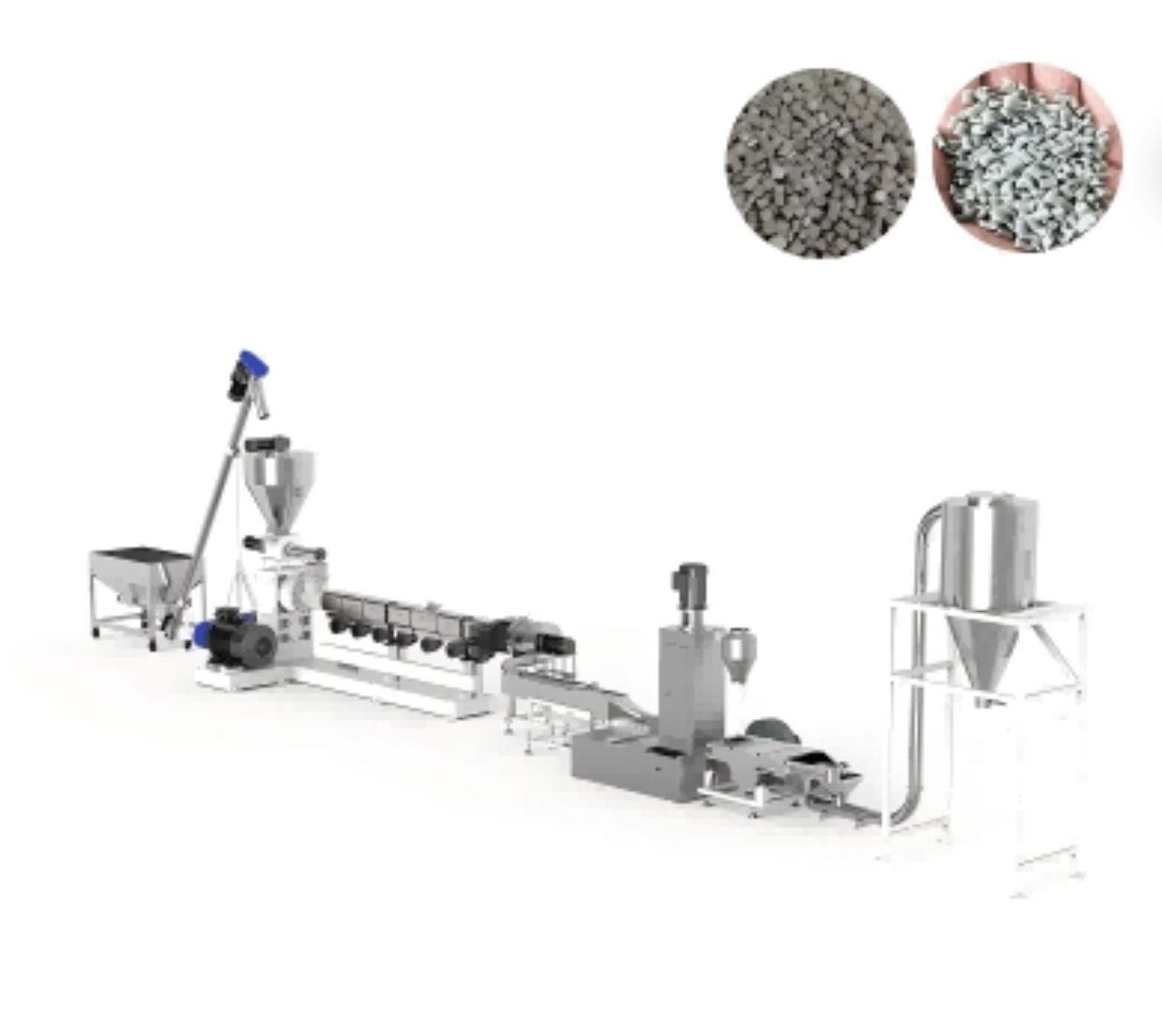

Single-screw extrusion machines are among the most common types used in plastic extrusion. They consist of a single rotating screw housed inside a heated barrel. The screw rotates, pushing raw plastic pellets forward while heating them until they melt. The molten plastic then flows through a die, which shapes it into the desired continuous profile.
The machine’s screw design is crucial for melting efficiency and material conveyance. It typically features three zones: feed, compression, and metering. In the feed zone, solid pellets enter and begin to move forward. The compression zone melts the plastic by combining heat from the barrel and friction from the screw. Finally, the metering zone ensures a consistent flow of molten plastic to the die.
Single-screw extruders are straightforward in design, making them relatively easy to operate and maintain. They work best for processing homogeneous thermoplastics that do not require extensive mixing or compounding.
These machines are widely used in producing pipes, sheets, films, and simple profiles. Their advantages include:
● Simplicity: Fewer moving parts reduce mechanical complexity and maintenance needs.
● Cost-effectiveness: They are generally less expensive than twin-screw extruders.
● High throughput: Suitable for continuous production of large volumes.
● Energy efficiency: Single-screw machines often consume less energy for simple melting tasks.
They are ideal for materials like polyethylene (PE), polypropylene (PP), and polystyrene (PS), which melt uniformly and require less mixing.
Despite their benefits, single-screw extruders have limitations:
● Limited mixing capability: They cannot efficiently handle materials requiring intensive mixing or compounding, such as filled plastics or blends.
● Heat sensitivity: Materials sensitive to overheating may degrade if not carefully controlled.
● Material restrictions: Not suitable for processing highly viscous or abrasive materials.
● Less flexibility: They may not adapt well to frequent changes in material or product type.
Operators must carefully monitor temperature and screw speed to avoid degradation or inconsistent melt quality.
Tip: Regularly inspect the screw and barrel for wear in single-screw extruders to maintain consistent melt quality and extend machine life.
Twin-screw extrusion machines feature two screws rotating inside a barrel. These screws can turn in the same or opposite directions, depending on the design. The screws intermesh, creating a self-cleaning effect that prevents material buildup and improves mixing. This design allows for better control over the melting, mixing, and conveying of plastics compared to single-screw extruders.
The twin screws can be co-rotating (turning the same way) or counter-rotating (turning opposite ways). Co-rotating screws excel at intensive mixing and compounding, while counter-rotating screws provide better pressure build-up and are preferred for certain applications like PVC processing.
Twin-screw extruders have multiple zones along their length, each with a specific function: feeding, melting, mixing, venting, and pumping. They often include venting ports to remove gases or moisture, which is critical when processing sensitive or filled materials. The screws' geometry can be customized with different flight shapes and pitches to optimize shear, residence time, and output.
Twin-screw extrusion machines are widely used in compounding, blending, and processing complex or filled materials. Their superior mixing capabilities make them ideal for:
● Producing wood-plastic composites (WPC)
● Compounding masterbatches and additives
● Processing PVC and other heat-sensitive polymers
● Manufacturing multi-layer or co-extruded products
Advantages include:
● Excellent mixing: The intermeshing screws ensure thorough blending and homogenization.
● Flexibility: They handle a wide range of materials, including fillers, reinforcements, and recycled content.
● Improved devolatilization: Venting ports allow removal of moisture and volatile substances.
● Stable output: Better control over melt temperature and pressure results in consistent product quality.
● Self-cleaning: The screws' design reduces material sticking and cross-contamination when switching materials.
Despite many benefits, twin-screw extruders have some drawbacks:
● Higher cost: They are more complex and expensive than single-screw machines.
● Increased maintenance: The intricate screw design requires more upkeep.
● Energy consumption: They generally use more power due to intensive mixing and shear.
● Potential for material degradation: Excessive shear or heat can degrade sensitive polymers if not carefully controlled.
● Complex operation: Skilled operators are needed to optimize process parameters and avoid issues like surging or inconsistent output.
Choosing the right twin-screw extruder involves balancing throughput, mixing needs, and material properties. Proper screw design and temperature control are key to maximizing performance and product quality.
Tip: When processing filled or heat-sensitive plastics on twin-screw extruders, use venting zones to remove volatiles and prevent degradation, ensuring consistent product quality.
Pipe extrusion machines specialize in producing continuous plastic pipes of various diameters and lengths. The process starts by melting plastic pellets and pushing the molten material through a circular die, which shapes it into a hollow tube. After shaping, the pipe passes through calibration and cooling systems to solidify and maintain the correct dimensions. Precise control of temperature, pressure, and line speed ensures consistent wall thickness and quality.
These machines often include single-screw or twin-screw extruders, depending on the material and mixing requirements. The extruded pipe is usually cooled in a water bath or vacuum calibration tank to prevent deformation. Downstream equipment such as haul-offs, cutters, and belling machines complete the line, preparing pipes for various applications.
Pipe extrusion machines handle a variety of thermoplastics, each suited for specific applications:
● PVC (Polyvinyl Chloride): Common for water pipes, electrical conduits, and drainage systems. Often processed using twin-screw extruders for better mixing and temperature control.
● HDPE (High-Density Polyethylene): Known for chemical resistance and toughness, used in water supply and gas distribution pipes. Typically extruded on single-screw machines with grooved feed sections.
● PP (Polypropylene): Used for hot water pipes and industrial applications requiring higher temperature resistance.
● PEX (Cross-linked Polyethylene): For flexible plumbing and radiant heating systems.
● Other materials: ABS, CPVC, and composite materials for specialized uses.
Material choice depends on factors like chemical resistance, temperature tolerance, flexibility, and cost.
Pipe extrusion machines serve many industries due to their ability to produce durable, precise pipes:
● Construction: Water supply, sewage, and gas pipelines rely heavily on extruded PVC, HDPE, and PP pipes.
● Agriculture: Irrigation tubing and drainage systems use flexible pipes from polyethylene.
● Electrical and telecommunications: Conduits protect wiring and fiber optics.
● Industrial processing: Pipes for chemical transport, fuel lines, and pneumatic systems.
● Medical and food industries: Pipes made from FDA-approved polymers for sanitary fluid transport.
The versatility of pipe extrusion machines allows manufacturers to produce pipes with varying diameters, wall thicknesses, and multilayer structures. Advanced dies enable co-extrusion, combining different materials for enhanced performance, such as UV resistance or improved mechanical strength.
Tip: Regularly calibrate the vacuum tank and monitor cooling water temperature in pipe extrusion lines to prevent pipe deformation and ensure consistent wall thickness.
Profile extrusion machines produce continuous plastic shapes other than pipes or sheets. These profiles have specific cross-sectional designs used in many products. The process involves melting plastic pellets and forcing the molten material through a shaped die. The extrudate cools and solidifies while maintaining the precise profile shape.
Profile extrusion is ideal for creating window frames, door trims, cable ducts, decorative moldings, and other custom shapes. The machines often include single-screw or twin-screw extruders depending on the material and mixing needs. After extrusion, the profile passes through calibration and cooling units to retain its dimensions and surface finish. A haul-off pulls the profile steadily, followed by cutting or winding equipment.
The versatility of profile extrusion machines allows manufacturers to produce complex, hollow, or multi-chamber profiles. Vacuum calibrators and cooling tables help prevent warping and ensure dimensional accuracy. Profiles can also be co-extruded with multiple layers or materials for enhanced properties like weather resistance or flexibility.
Profile extrusion machines process a wide range of thermoplastics, selected based on the product’s application and required properties:
● PVC (Polyvinyl Chloride): Common for window and door frames, siding, and cable trays. Rigid PVC (uPVC) is often used for structural profiles, while flexible PVC suits seals and gaskets.
● Polyethylene (PE): Used for protective trims, tubing, and flexible profiles. High-density polyethylene (HDPE) offers toughness and chemical resistance.
● Polypropylene (PP): Suitable for profiles needing higher temperature resistance or stiffness.
● Wood-Plastic Composites (WPC): Blends of plastic and wood fibers used in decking, fencing, and decorative profiles.
● Other materials: ABS, TPU, and specialty polymers for impact resistance, flexibility, or UV stability.
Material choice depends on factors like mechanical strength, weather exposure, flexibility, and cost. Twin-screw extruders are preferred for filled or composite materials due to better mixing and temperature control.
Profile extrusion machines serve many industries by producing tailored plastic profiles:
● Building and Construction: Window and door frames, trims, siding, cable conduits, weatherstripping, and decorative moldings.
● Automotive: Seals, gaskets, trim pieces, and protective coatings.
● Electrical: Cable trays, conduits, and insulating profiles.
● Furniture and Consumer Goods: Edge bandings, curtain rails, picture frames, and appliance components.
● Agriculture: Protective profiles, tubing, and structural supports.
Their ability to produce complex cross-sections continuously makes profile extrusion machines highly efficient for mass production. Co-extrusion capabilities allow combining materials in one profile, adding functional layers such as soft seals or UV-resistant coatings.
Tip: Use vacuum calibration systems in profile extrusion lines to maintain precise dimensions and prevent warping, especially for complex or hollow profiles.
Sheet extrusion machines produce flat plastic sheets or films in continuous lengths. The process begins by melting plastic pellets in an extruder, then pushing the molten material through a flat, wide die called a sheet die or T-die. The extrudate exits as a thin, uniform sheet that passes through cooling rollers or calender rolls to solidify and achieve precise thickness and surface finish.
The cooling stage is crucial since plastics have low thermal conductivity. Cooling rollers or chill rolls quickly solidify the sheet while maintaining its flatness and dimensional stability. After cooling, the sheet may be trimmed at the edges and either wound into rolls or cut into panels.
Sheet extrusion machines can handle a wide range of sheet thicknesses, from very thin films (fractions of a millimeter) to thick panels several millimeters thick. Some machines include polishing rollers that impart specific surface textures or gloss levels.
Sheet extrusion machines process many thermoplastics depending on the application:
● Polyethylene (PE): Common for packaging films, liners, and flexible sheets. LDPE and HDPE are typical grades.
● Polypropylene (PP): Used for rigid sheets, thermoforming applications, and packaging.
● Polyvinyl Chloride (PVC): Often extruded into rigid sheets for construction, signage, and cladding.
● Polystyrene (PS): For clear or opaque rigid sheets used in displays or packaging.
● Acrylic (PMMA) and Polycarbonate (PC): For transparent sheets with high impact resistance, used in glazing or protective covers.
● PET (Polyethylene Terephthalate): Used for food packaging and thermoformed trays.
● Foamed sheets: Some sheet lines incorporate foaming agents to produce lightweight, rigid foam boards, often based on PVC.
Material choice depends on factors like clarity, stiffness, chemical resistance, and cost.
Sheet extrusion machines serve many industries by producing versatile flat products:
● Packaging: Sheets for thermoforming trays, containers, blister packs, and flexible films.
● Construction: PVC or polycarbonate sheets for siding, roofing panels, wall cladding, and skylights.
● Signage and Display: Rigid sheets for advertising boards, point-of-sale displays, and protective panels.
● Automotive: Interior panels, trims, and protective covers.
● Consumer Goods: Appliance panels, protective films, and laminates.
● Furniture: Lightweight foam boards used as alternatives to wood or plywood.
● Medical: Sheets made from medical-grade polymers for sterile packaging or equipment covers.
Sheet extrusion lines can be customized with downstream equipment like embossers, laminators, or cutting stations to meet specific product requirements.
Tip: Regularly check and maintain cooling rollers in sheet extrusion machines to ensure uniform sheet thickness and prevent surface defects.
Foam extrusion machines produce plastic products containing tiny gas-filled cells, making them lighter and often more rigid than solid plastics. The process involves mixing a blowing agent—either chemical or physical—into the molten plastic during extrusion. This agent creates a cellular structure as the material exits the die and expands before cooling and solidifying.
These machines typically use either single-screw or twin-screw extruders equipped with specialized screws and barrel designs to handle the foaming agents and control cell size. Precise temperature and pressure control are crucial to achieve uniform cell structure and prevent defects such as voids or uneven density.
Foam extrusion is widely used to make foam sheets, boards, profiles, and pipes. The foamed products offer advantages like improved insulation, reduced weight, and enhanced impact resistance compared to solid plastics.
Common materials for foam extrusion include:
● PVC (Polyvinyl Chloride): Often used for foam boards and sheets. PVC foam offers good rigidity, chemical resistance, and is popular in signage, furniture, and construction.
● Polyethylene (PE): Used for flexible foam products such as tubing and packaging materials. PE foam is known for cushioning and shock absorption.
● Polypropylene (PP): Produces lightweight, semi-rigid foam profiles and sheets with good chemical resistance.
● Polystyrene (PS): Expanded polystyrene foam is common for insulation panels and packaging.
● Other thermoplastics: Materials like ABS and TPU can be foamed for specialized applications requiring impact resistance or flexibility.
Blowing agents can be physical (e.g., nitrogen, carbon dioxide) or chemical (e.g., azodicarbonamide), depending on product requirements and environmental regulations.
Foam extrusion machines serve many industries due to their ability to produce lightweight, insulating, and cushioning products:
● Construction: Foam boards for insulation, wall panels, and decorative moldings reduce weight while providing thermal resistance.
● Packaging: Protective foam sheets and profiles cushion fragile goods during shipping.
● Furniture: Lightweight foam boards serve as core materials in furniture panels and cabinetry.
● Automotive: Foam profiles and sheets provide sound insulation and impact absorption.
● Signage and Displays: PVC foam sheets offer a smooth surface for printing and durability outdoors.
● Consumer Goods: Foam tubing and profiles are used for sports equipment, toys, and protective gear.
Foam extrusion allows manufacturers to tailor density, cell size, and mechanical properties by adjusting process parameters and material formulations, making it a versatile solution for many applications.
Tip: Maintain precise temperature and pressure control during foam extrusion to ensure consistent cell structure and avoid defects like voids or uneven density.
Wood-Plastic Composite (WPC) extrusion machines produce materials combining wood fibers or flour with thermoplastics. These composites offer the natural look and feel of wood while providing the durability and low maintenance of plastics. The extrusion process involves melting the plastic matrix, blending it thoroughly with wood particles, and shaping the mixture through a die into continuous profiles or boards.
WPC extrusion requires specialized equipment because the wood fibers increase the material’s abrasiveness and viscosity. Twin-screw extruders are commonly used to ensure uniform mixing and to handle the higher mechanical stress. These extruders often feature wear-resistant screws and barrels to withstand the abrasive nature of wood fillers.
After extrusion, the composite passes through calibration and cooling systems that maintain shape and surface quality. The haul-off pulls the profile steadily, followed by cutting or coiling depending on the product. WPC extrusion lines may also include pelletizing units for producing granules used in injection molding or other processes.
WPC extrusion blends thermoplastics with natural fibers, typically wood flour or sawdust. Common plastics used include:
● Polyvinyl Chloride (PVC): Offers good weather resistance and rigidity. PVC-based WPCs are popular for outdoor decking and fencing.
● Polyethylene (PE): Often high-density polyethylene (HDPE), providing toughness and moisture resistance. PE-WPCs are common in outdoor and landscaping products.
● Polypropylene (PP): Used for applications needing higher temperature resistance and flexibility.
● Wood fibers: Usually finely ground wood flour or sawdust from hardwood or softwood species. The particle size and moisture content affect extrusion performance and final product quality.
● Additives: Coupling agents improve bonding between wood fibers and plastic, stabilizers protect against UV degradation, and lubricants reduce friction during extrusion.
The exact formulation varies depending on product requirements such as strength, appearance, and environmental exposure.
WPC extrusion machines serve industries requiring durable, low-maintenance, and aesthetically pleasing products:
● Building and construction: Decking boards, fencing, railing, cladding, window and door profiles, and decorative moldings. WPCs resist rot, insects, and weather better than natural wood.
● Outdoor furniture: Tables, benches, and garden accessories that combine wood’s natural texture with plastic’s durability.
● Automotive: Interior trim components and panels that benefit from WPC’s lightweight and strength.
● Consumer goods: Flooring, decking tiles, and other household items.
● Packaging: Specialized crates and pallets that require strength and moisture resistance.
The ability to recycle scrap WPC material back into the extrusion process enhances sustainability. WPC extrusion machines enable manufacturers to meet growing demand for eco-friendly, wood-like plastic products that reduce reliance on natural timber.
Tip: Use wear-resistant screws and barrels in WPC extrusion machines to handle abrasive wood fibers and extend equipment life.
Plastic extrusion machines come in various types, including single-screw, twin-screw, pipe, profile, sheet, foam, and wood-plastic composite extruders. Each type serves specific applications, offering unique benefits like mixing capabilities, energy efficiency, or material flexibility. Future trends in extrusion machines focus on sustainability and advanced material processing. Foshan Bkwell Machinery Co., Ltd. provides innovative extrusion solutions, enhancing product quality and operational efficiency. Their machines deliver value by meeting diverse industry needs with reliable performance and cutting-edge technology.
A: A Plastic Recycling Machine is used to reprocess waste plastics into reusable materials, often integrated into extrusion lines to enhance sustainability and reduce waste.
A: Single-screw extrusion machines are simpler and cost-effective, ideal for homogeneous plastics, while twin-screw machines offer superior mixing and flexibility for complex materials.
A: Twin-screw extruders provide excellent mixing and venting capabilities, making them ideal for filled plastics and materials requiring thorough homogenization.
A: Foam extrusion machines create lightweight, insulating products with improved impact resistance, using blowing agents to form cellular structures within the plastic.
A: Check for consistent temperature control, monitor screw wear, and ensure proper material feeding to troubleshoot common issues with a Plastic Recycling Machine.
